用于填充种种填料，填料固定板便于安装和固定。以下为标准长度，带侧口，也可以根据特殊需求定制。
|

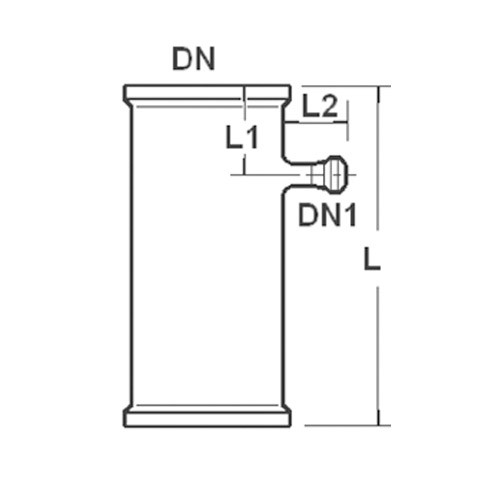

DN |
DN1 |
L (mm) |
L1 (mm) |
L2 (mm) |
订货号 |
|
Ø180 |
DN25 |
400 |
100 |
65 |
QTA-TJ-180/400/25 |
|
Ø180 |
DN40 |
400 |
100 |
80 |
QTA-TJ-180/400/40 |
|
Ø180 |
DN50 |
400 |
100 |
85 |
QTA-TJ-180/400/50 |
|
Ø180 |
DN25 |
6000 |
100 |
65 |
QTA-TJ-180/600/25 |
|
Ø180 |
DN40 |
6000 |
100 |
80 |
QTA-TJ-180/600/40 |
|
Ø180 |
DN50 |
6000 |
100 |
85 |
QTA-TJ-180/600/50 |
|
Ø180 |
DN25 |
1000 |
100 |
65 |
QTA-TJ-180/1000/25 |
|
Ø180 |
DN40 |
1000 |
100 |
80 |
QTA-TJ-180/1000/40 |
|
Ø180 |
DN50 |
1000 |
100 |
85 |
QTA-TJ-180/1000/50 |
|
DN |
DN1 |
L (mm) |
L1 (mm) |
L2 (mm) |
订货号 |
|
Ø230 |
DN25 |
400 |
125 |
65 |
QTA-TJ-230/400/25 |
|
Ø230 |
DN40 |
400 |
125 |
80 |
QTA-TJ-230/400/40 |
|
Ø230 |
DN50 |
400 |
125 |
85 |
QTA-TJ-230/400/50 |
|
Ø230 |
DN25 |
6000 |
125 |
65 |
QTA-TJ-230/600/25 |
|
Ø230 |
DN40 |
6000 |
125 |
80 |
QTA-TJ-230/600/40 |
|
Ø230 |
DN50 |
6000 |
125 |
85 |
QTA-TJ-230/600/50 |
|
Ø230 |
DN25 |
1000 |
125 |
65 |
QTA-TJ-230/1000/25 |
|
Ø230 |
DN40 |
1000 |
125 |
80 |
QTA-TJ-230/1000/40 |
|
Ø230 |
DN50 |
1000 |
125 |
85 |
QTA-TJ-230/1000/50 |
|
DN |
DN1 |
L (mm) |
L1 (mm) |
L2 (mm) |
订货号 |
|
DN300 |
DN25 |
400 |
125 |
65 |
QTA-TJ-300/400/25 |
|
DN300 |
DN40 |
400 |
125 |
80 |
QTA-TJ-300/400/40 |
|
DN300 |
DN50 |
400 |
125 |
85 |
QTA-TJ-300/400/50 |
|
DN300 |
DN80 |
400 |
125 |
100 |
QTA-TJ-300/400/80 |
|
DN300 |
DN25 |
6000 |
125 |
65 |
QTA-TJ-300/600/25 |
|
DN300 |
DN40 |
6000 |
125 |
80 |
QTA-TJ-300/600/40 |
|
DN300 |
DN50 |
6000 |
125 |
85 |
QTA-TJ-300/600/50 |
|
DN300 |
DN80 |
6000 |
125 |
100 |
QTA-TJ-300/600/80 |
|
DN300 |
DN25 |
1000 |
125 |
65 |
QTA-TJ-300/1000/25 |
|
DN300 |
DN40 |
1000 |
125 |
80 |
QTA-TJ-300/1000/40 |
|
DN300 |
DN50 |
1000 |
125 |
85 |
QTA-TJ-300/1000/50 |
|
DN300 |
DN80 |
1000 |
125 |
100 |
QTA-TJ-300/1000/80 |
